GC3 Series GeoCube
Now CE Marked for EEA applications
The new
GC3 Series
GeoCube takes TC Testing to even deeper borehole testing!
A new stainless steel heat exchanger and new power handling
elements allow the Extended Range GeoCube to reach 1,100 feet /
335 meters with 17,500 watts of power.
 The
GC3 Extended range GeoCube now features a new high-flow
electronic flow meter with 1% flow measurement accuracy.
The new meter offers a stainless steel body and larger flow path
for use with the optional "booster pump" and works with large
exchanger configurations and very deep boreholes. Standard
on all units!
Additionally, the new heat exchanger manifold design allows
external access to the heating elements for faster replacement
in the event of an element burnout. Located even lower in
the fluid flow and with an externally mounted pressure relief
valve, the heaters are even further protected from accidental
airlock and burnout.
The Extended Range is still
available with (3) standard and Advanced Data Logger options.
|
|
New GC3 Series GeoCube
for Extended Range
to 1,100 ft / 335 meters |
|
PRODUCT LINE
The GeoCube family provides firms with an in-house Thermal Conductivity (TC) / Thermal Response (TR) / Borehole Thermal Resistance (BTR) testing and data analysis capability.
The GC3 GeoCube available in 500 /
850 / 1,100 foot models.

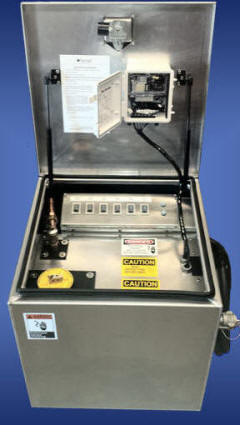

External Heater Access Panel (Open)
New (5) Heater Element Panel
|
